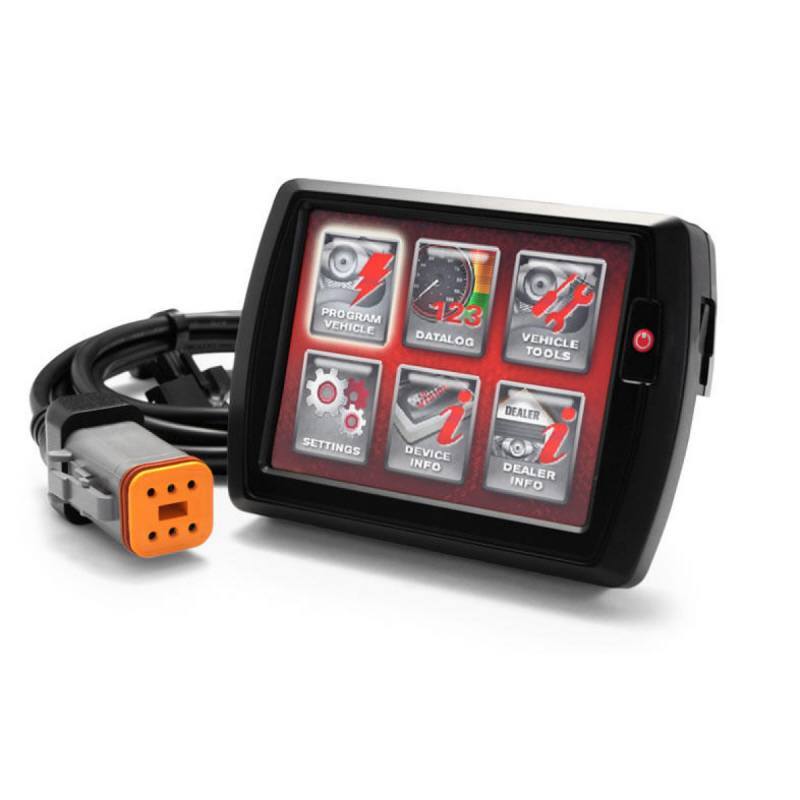

Harley Davidson Can Bus Models DynoJet Power Vision Black Auto Tuning Fuel Injection Performance Module EFI Systems

Harley Davidson Can Bus Models DynoJet Power Vision Black Auto Tuning Fuel Injection Performance Module EFI Systems 1020-2325

Features

• Flash tune any 2001-2014 Softail, 2002-Present Touring, 2002-Present V-rod, 2004-Present Dyna and 2007-Present Sportsters!
• Sophisticated, yet simple touch screen display that DOES NOT require the use of a computer to flash your bike. Simply select the tune and follow the on-screen prompts to download the tune.
• Integrated AMPS 4 hole threaded inserts for various mounting solutions
• Power Vision downloads and stores the stock calibration in the event you need to restore the OEM calibration
• Flexibility – choose from Dynojet Pre-Configured tunes, Custom Tunes, or use a copy of your stock tune to fit the needs of your bike.
• On-Device Tune Editing – allows users to change / edit basic tuning parameters on the device, and then deliver the changes to the vehicle ECM without using a computer.
• Display all J1850 and CAN H-D vehicle data as well as wide band air-fuel ratio* and various calculated channels (such as MPG instant and trip MPG)
• Customizable virtual gauges allow data to be monitored live, and / or logged while riding
• User defined visual alarms for any data channel (example, if knock exceeds 2 degrees, or if Cylinder Head Temp exceeds 280 degF, enable visual alarm).
• AutoTune** Basic and Pro – calculates and stores fuel trims to optimize fuel curve
• Check and clear diagnostic codes
• Reset adaptive fuel trims and idle offset (with bike running)

Power Vision Device Specifications

• 3.5 24bit color TFT (touch screen) display with touch panel (16,777,216 colors)
• Compact Dimensions: 2.83L X 3.97W X .84H (click on link for visual)
• Weather, shock, and vibration resistant enclosure - fully potted with silicone elastomer, and utilizes over molded cables with sealed cable connections
• Integrated AMPS 4 hole threaded inserts for various mounting solutions (Dynojet recommends TechMounts)
• USB mini-B weatherized- compatible with Windows XP, Vista, and 7
• Molex 8 pin connector -to- vehicle interface cable
• Dynojet CAN-Link Expansion Port allows interfacing with other Dynojet products, such as the Wide Band 2 or Auto Tune Module*
• 2GB of internal memory provides a robust capacity for tune files and data logs
